$7,040.00
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 10 |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 65 |
| Special feature | Gold-plated contacts; Correction factor K = 1; Magnetic-field immune |
|---|---|
| Application | Use in machine tools, coolants and lubricants |
| Magnetic-field immune | yes |
| Max. magnetic field immunity [mT] | 300 |
| Operating voltage [V] | 10…30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 2000 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Sensing range [mm] | 10 |
|---|---|
| Real sensing range Sr [mm] | 10 ± 10 % |
| Operating distance [mm] | 0…8.1 |
| Correction factor | steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1 |
|---|---|
| Hysteresis [% of Sr] | 3…15 |
| Switch point drift [% of Sr] | -10…10 |
| Correction factor K = 1 | yes |
| Ambient temperature [°C] | -25…70 |
|---|---|
| Protection | IP 68; (“Coolant”) |
| EMC |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 661 | ||||||||||||
| Embedded software included | yes | ||||||||||||
| UL approval |
|
| Weight [g] | 98.5 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 65 |
| Thread designation | M30 x 1.5 |
| Materials | stainless steel (1.4404 / 316L); sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|

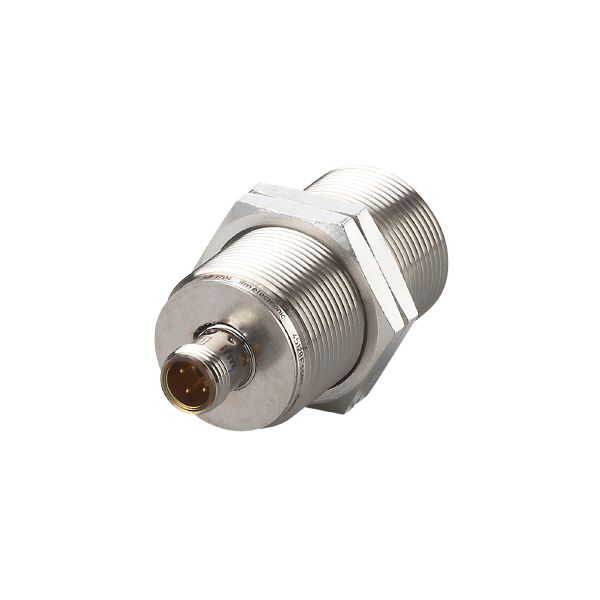

| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
