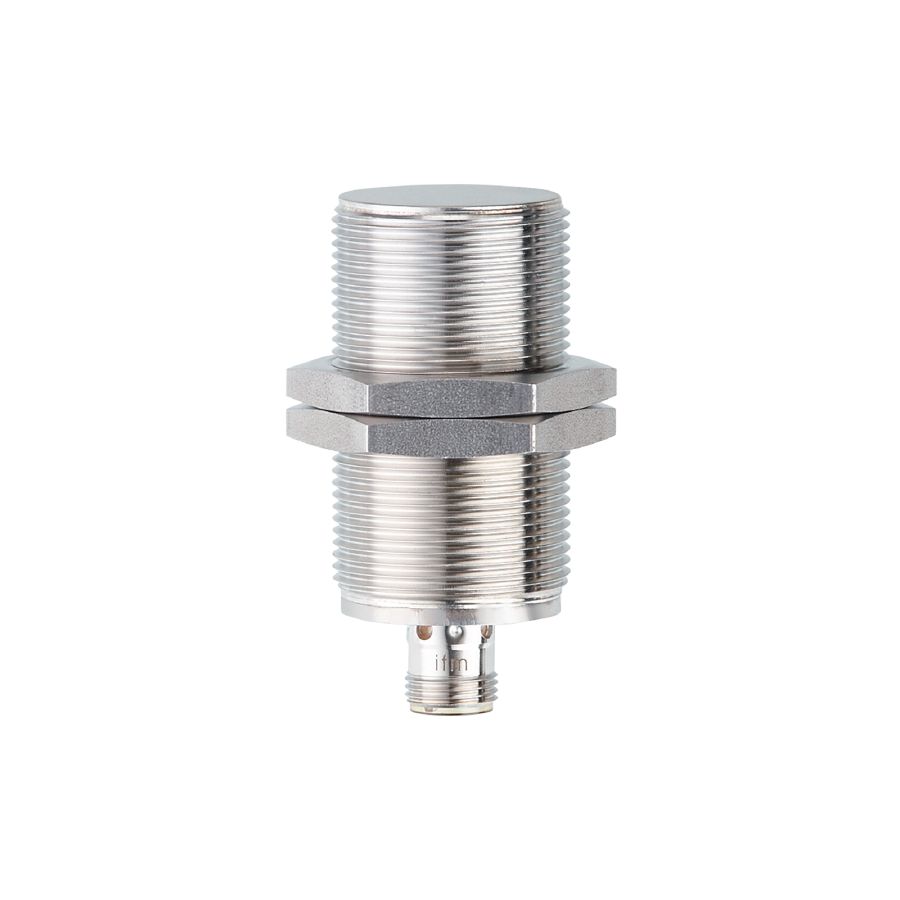

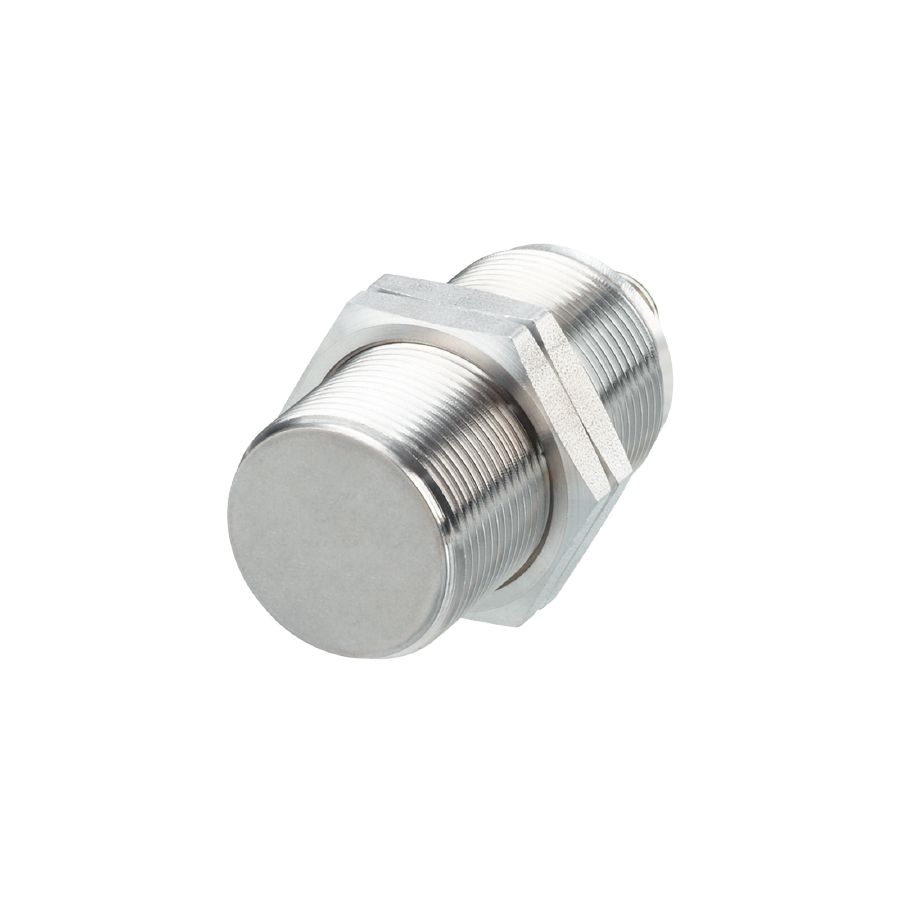

Product characteristics
| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range [mm] |
10 |
| Housing |
threaded type |
| Dimensions [mm] |
M30 x 1.5 / L = 65 |
Application
| Special feature |
Gold-plated contacts; Increased sensing range; Full-metal housing |
| Pressure rating [bar] |
100 |
| Note on pressure rating |
|
Electrical data
| Operating voltage [V] |
10…30 DC |
| Current consumption [mA] |
< 20 |
| Protection class |
III |
| Reverse polarity protection |
yes |
Outputs
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
40 |
| Switching frequency DC [Hz] |
50 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
Detection zone
| Sensing range [mm] |
10 |
| Real sensing range Sr [mm] |
10 ± 10 % |
| Operating distance [mm] |
0…8.1 |
| Increased sensing range |
yes |
Accuracy / deviations
| Correction factor |
steel: 1 / stainless steel: 0.2 / brass: 0.8 / aluminium: 0.6 / copper: 0.2 |
| Hysteresis [% of Sr] |
1…20 |
| Switch point drift [% of Sr] |
-10…10 |
Operating conditions
| Ambient temperature [°C] |
-40…60 |
| Protection |
IP 67; (when used outside the hazardous area: IP 65, IP 66, IP 67, IP 68, IP 69K) |
Tests / approvals
| Approval |
BVS 12 ATEX E 045 X; IECEx BVS 12.0030 X |
| ATEX marking |
 II 3G Ex ec IIC T6 Gc X| II 2D Ex tb IIIC T85°C Db X |
| EMC |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 |
class B |
|
| Impact resistance |
|
| Vibration resistance |
| EN 60068-2-6 Fc |
20 g (10…3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea |
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-27 Ea |
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| Fast temperature change |
| EN 60068-2-14 Na |
TA = -40°C; TB = 85°C; t1 = 30 min; t2 = 10 s 50 cycles |
|
| Salt spray test |
| EN 60068-2-52 Kb |
severity level 5 (4 test cycles) |
|
| MTTF [years] |
1258 |
Mechanical data
| Weight [g] |
207 |
| Housing |
threaded type |
| Mounting |
flush mountable |
| Dimensions [mm] |
M30 x 1.5 / L = 65 |
| Thread designation |
M30 x 1.5 |
| Materials |
stainless steel (1.4404 / 316L); PEI; lock nuts: stainless steel |
| Tightening torque [Nm] |
80 |
| Full-metal housing |
yes |
Displays / operating elements
| Display |
| switching status |
4 x 90° LED, yellow |
|
Remarks
| Remarks |
| Note: |
| for use in hazardous areas |
| A fuse must be connected between the current source and the unit. |
| (40 mA time lag, to EN 60127-2) |
| The fuse must be inserted in the circuit L+ outside the hazardous areas. |
|
| Pack quantity |
1 pcs. |

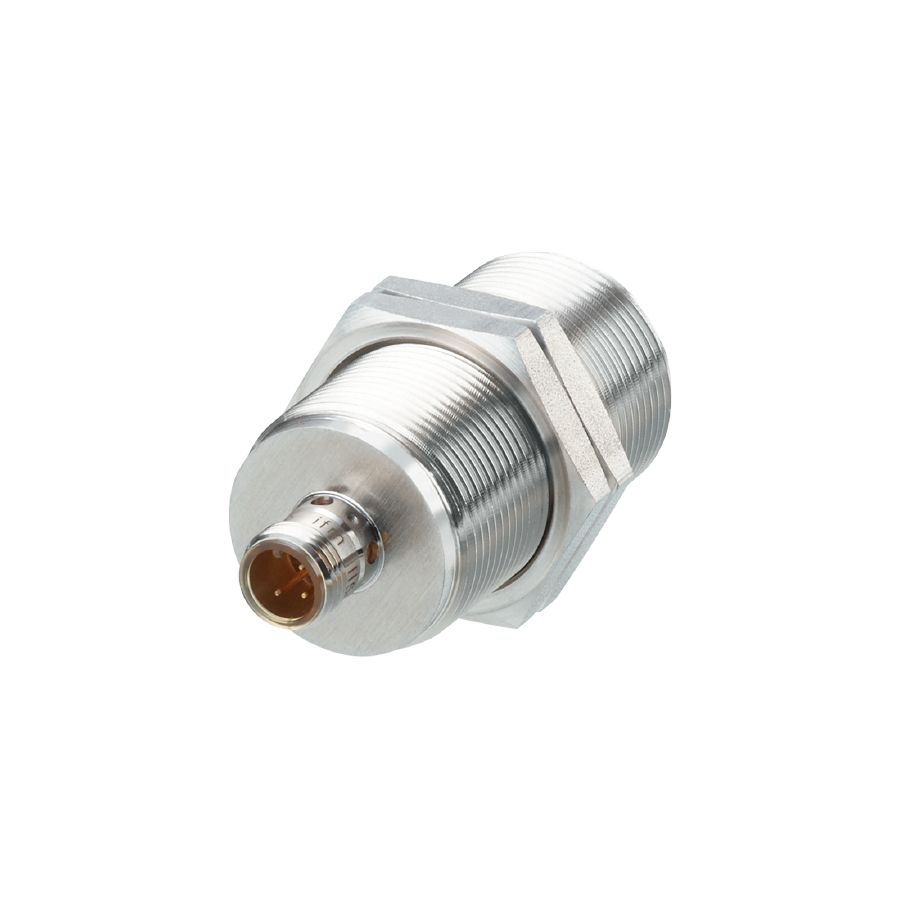

Electrical connection – plug
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
