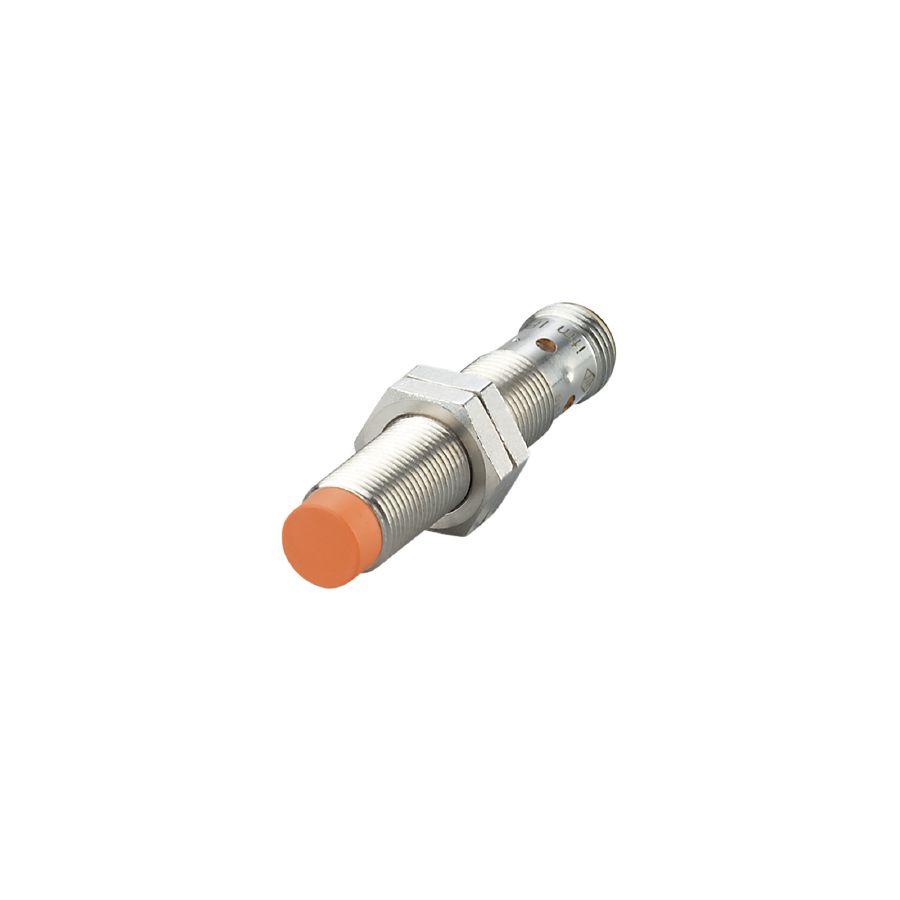

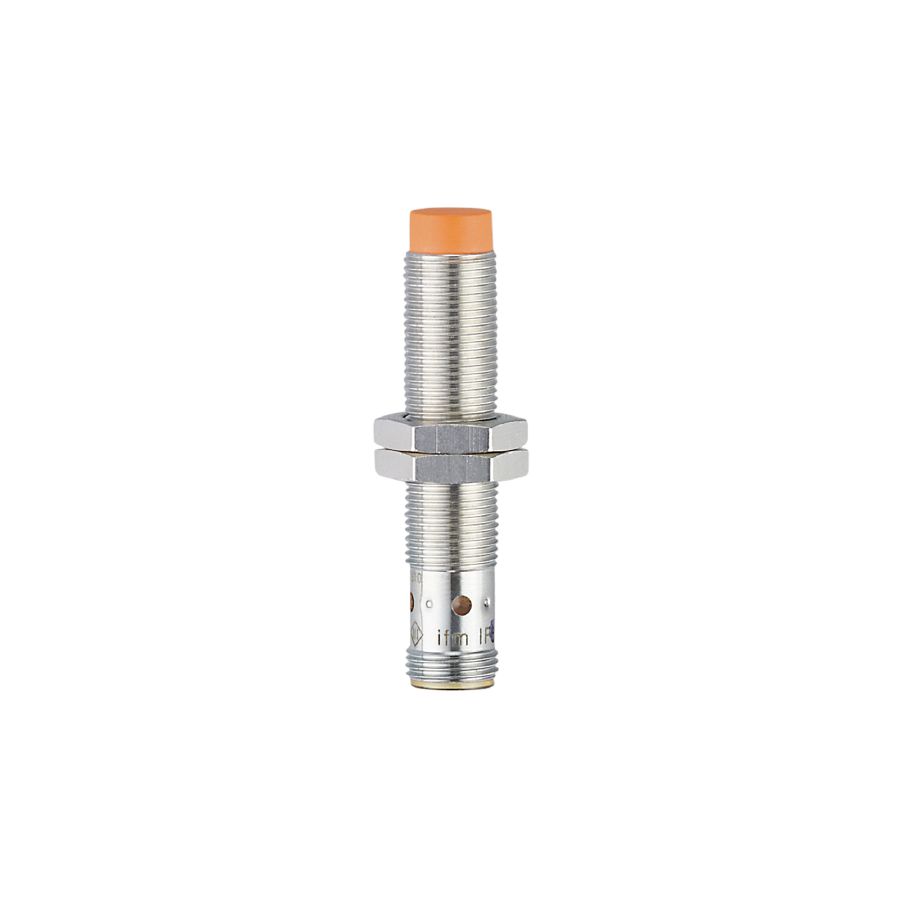

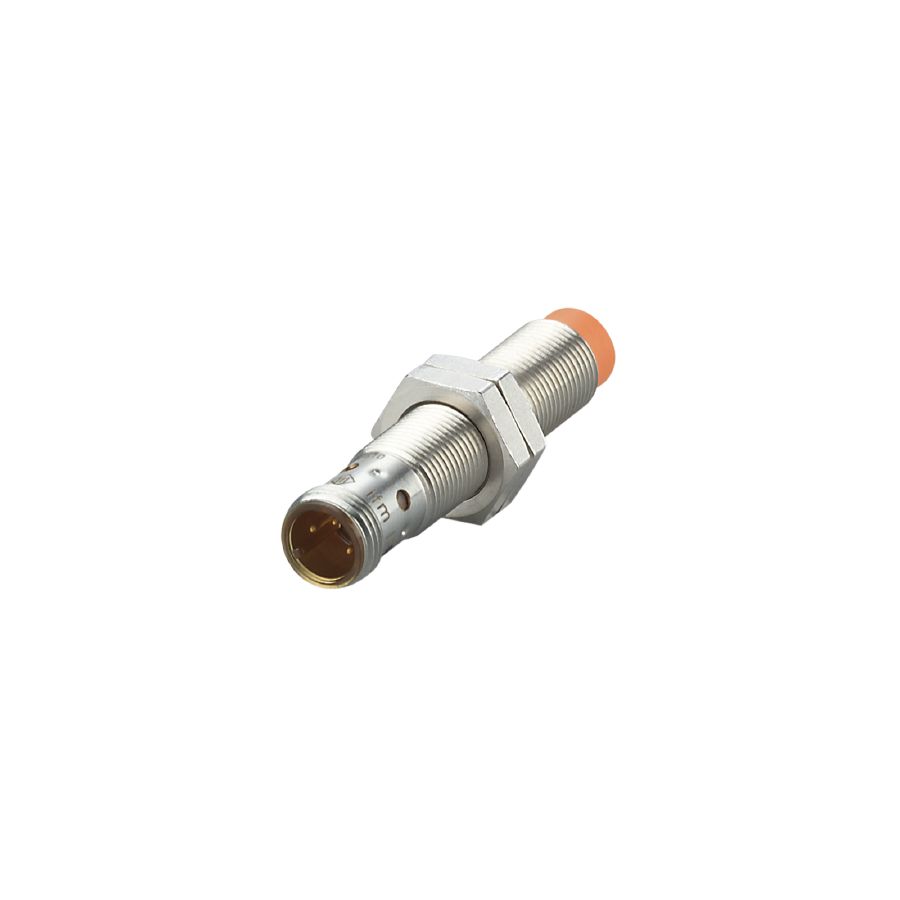

IF6124

Product characteristics

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (selectable)
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M12 x 1 / L = 60

Electrical data

Operating voltage [V]	10…30 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	600
Short-circuit protection	yes
Overload protection	yes

Detection zone

Switch point IO-Link [mm]	1.3…6.5; (parameterisable)
Measuring range IO-Link [mm]	0.7…7

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis [% of Sr]	3…15
Linearity error of analogue output [%]	± 2 %; (of the final value of the measuring range)
Repeatability analogue output [%]	± 1 %; (of the final value of the measuring range)
Temperature coefficient	± 0,3 %/K; (of the final value of the measuring range)

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable

SIO mode

yes

Required master port type

Min. process cycle time [ms]

Supported DeviceIDs

Type of operation	DeviceID
Default	791

Operating conditions

Ambient temperature [°C]	-40…85
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Vibration resistance

EN 60068-2-6 Fc

20 g (10…3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-29 Eb

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

Fast temperature change

EN 60068-2-14 Na

TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles

MTTF [years]

672

Embedded software included

yes

UL approval

Ta	-25…70 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	A008
File number UL	E174191

Mechanical data

Weight [g]	27.1
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M12 x 1 / L = 60
Thread designation	M12 x 1
Materials	brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
