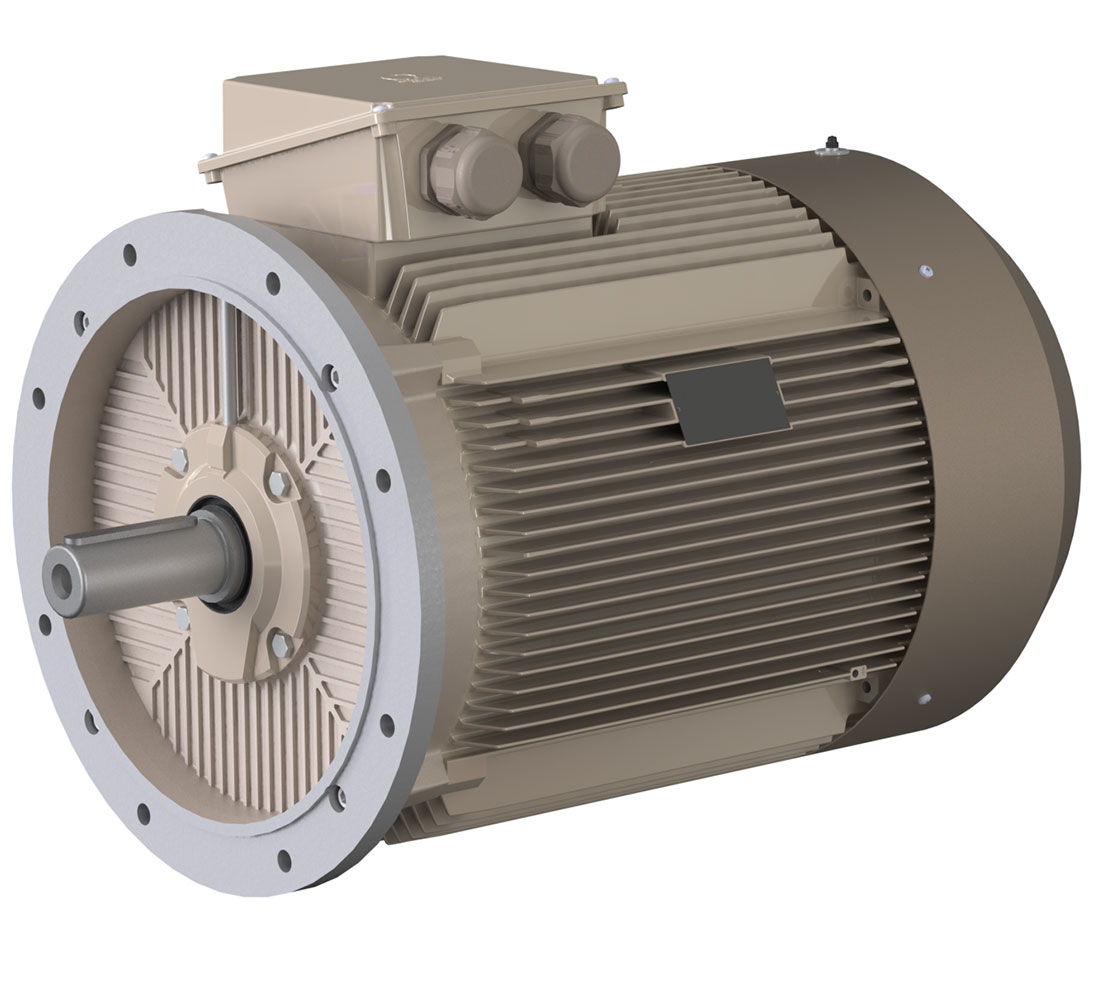

3M0SG4E-35MC60BT0

Product Code	3M0SG4E-35MC60BT0
Motor Type	3MGS 355MC6
Mounting Method	IMB5
Terminal Box Location	Üstte
Efficiency Class	IE4
Output Power	250,00 kW
Synchronous Speed	1000 rpm
Body Material	GG20
Body Size	355MC6
Phase	3
Frequency	50
Voltage	400 / 690 V (D/Y)
Number of Poles	6
Current	439,93 / 255,03 A ( / )
Torque	2400,40 Nm
Moment of Inertia	12,8 kg.m²
Load	4/4 100% Load	3/4 75% Load	2/4 50% Load
Efficiency	96,5 %	96,6 %	96,4 %
Power Factor	0,85	0,82	0,74
Starting Current	7,4
Starting Moment	2,7
Breakdown Torque	3,0
Protection Degree	IP 55
Insulation Class	F F
Temperature Increase Class	B B
Ambient Temperature	-20°C +40°C
Altitude	1000
Cooling Method	IC 411
Noise of Level	75 dB
Vibration Class	Derece A
Duty Type	S1
Service Factor	1,00
Motor Rotation Direction
Approximate Rotor Weight	665,0 kg
Approximate Motor Weight	1875,0 kg
Bearings	Ön (6204 ZZ/CM)	Arka (6204 ZZ/CM)
Relubrication Period	11000h	60g
Grease Volume	Shell Alvania Rt3	60g
Grease Type	Shell Alvania Rt3
