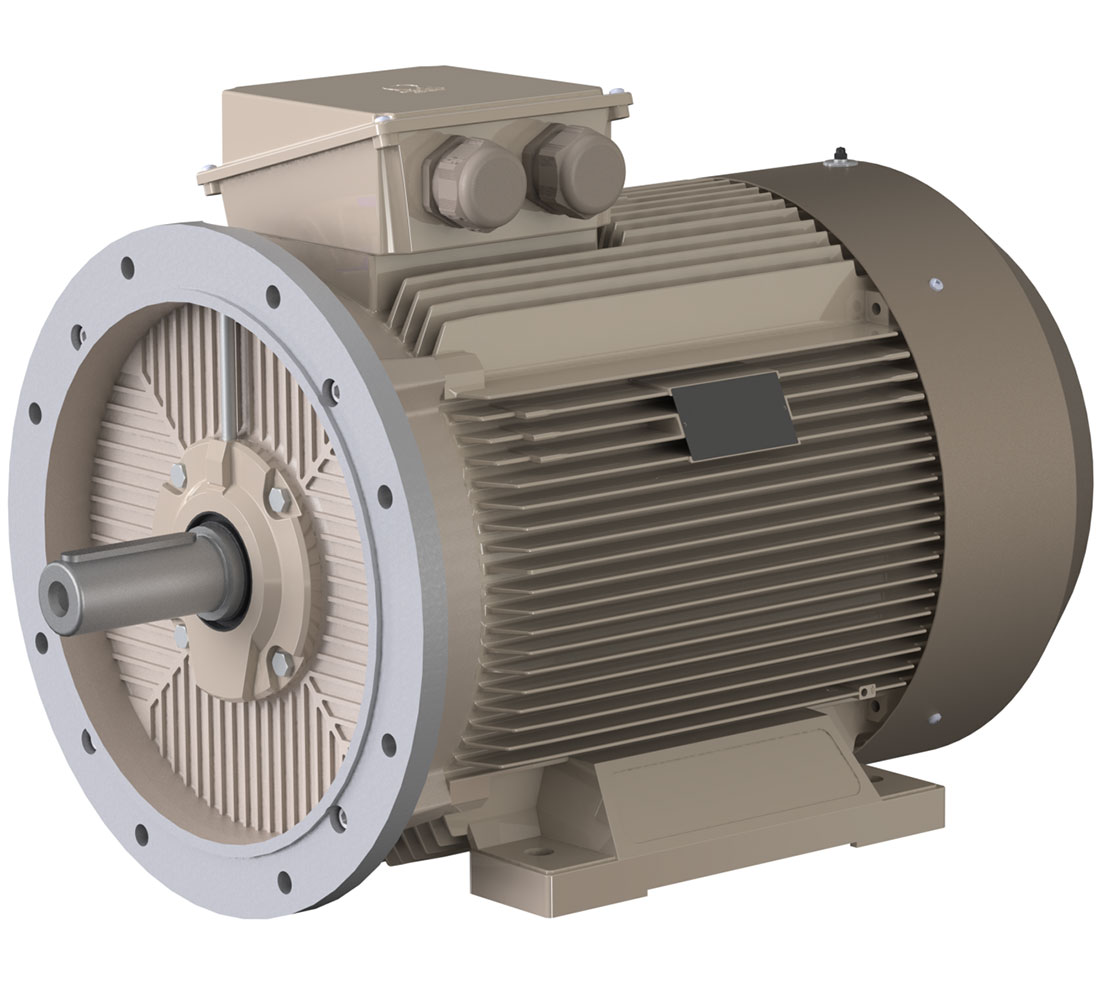

3M0SG4E-35MB20CT0

Product Code	3M0SG4E-35MB20CT0
Motor Type	3MGS 355MB2
Mounting Method	IMB35
Terminal Box Location	Üstte
Efficiency Class	IE4
Output Power	315,00 kW
Synchronous Speed	3000 rpm
Body Material	GG20

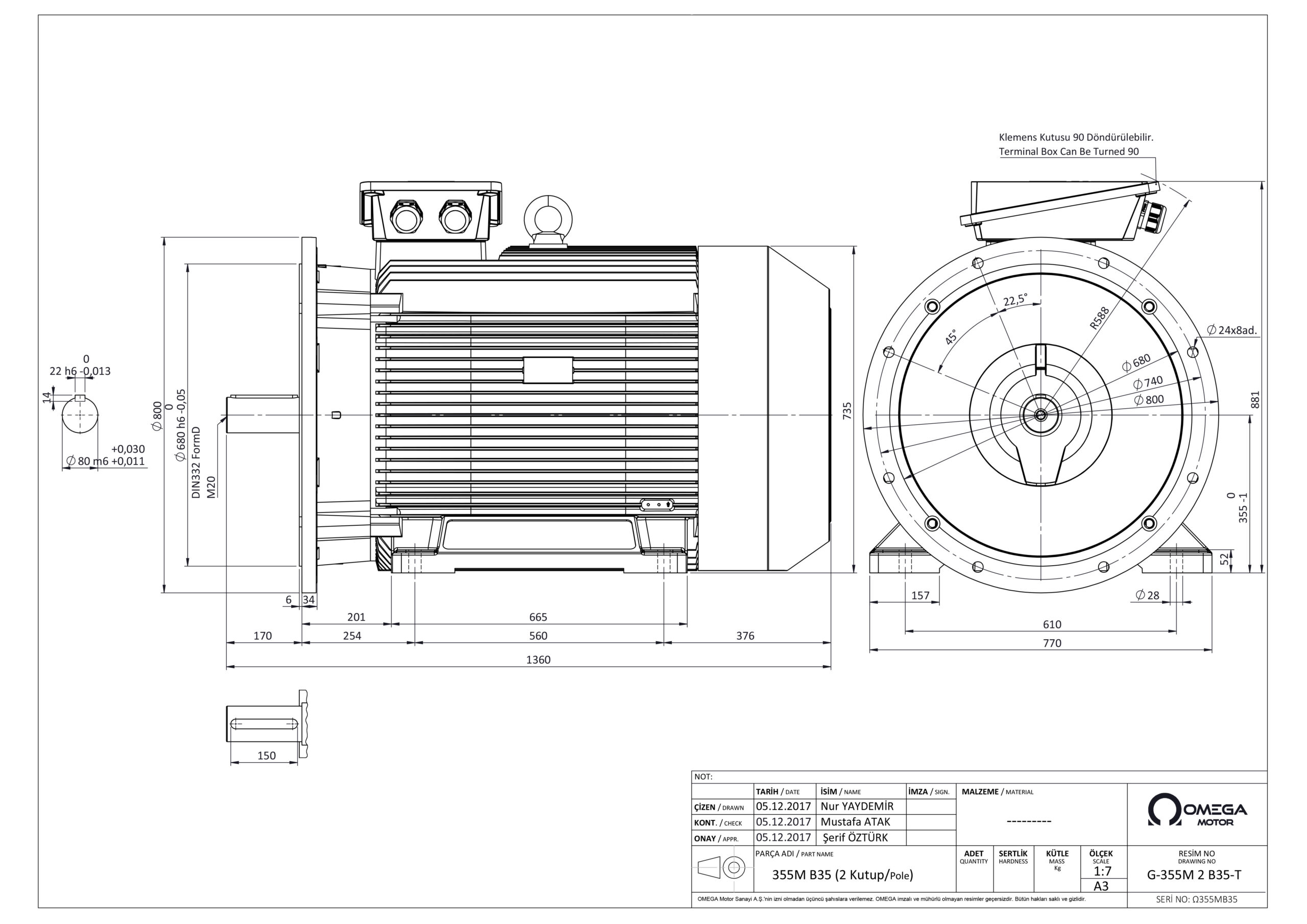

Body Size	355MB2
Phase	3
Frequency	50
Voltage	400 / 690 V (D/Y)
Number of Poles	2
Current	529,40 / 306,90 A ( / )
Torque	1009,00 Nm
Moment of Inertia	3,62 kg.m²
Load	4/4 100% Load	3/4 75% Load	2/4 50% Load
Efficiency	96,5 %	96,5 %	96,2 %
Power Factor	0,89	0,87	0,82
Starting Current	8,2
Starting Moment	2,5
Breakdown Torque	3,3
Protection Degree	IP 55
Insulation Class	F F
Temperature Increase Class	B B
Ambient Temperature	-20°C +40°C
Altitude	1000
Cooling Method	IC 411
Noise of Level	80 dB
Vibration Class	Derece A
Duty Type	S1
Service Factor	1,00
Motor Rotation Direction
Approximate Rotor Weight	387,0 kg
Approximate Motor Weight	1668,0 kg
Bearings	Ön (6204 ZZ/CM)	Arka (6204 ZZ/CM)
Relubrication Period	2000h	45g
Grease Volume	Shell Alvania Rt3	45g
Grease Type	Shell Alvania Rt3
